Achieving survey-grade accuracy in drone mapping requires a systematic approach that combines precise Ground Control Points (GCP) implementation with Real-Time Kinematic (RTK) integration. This comprehensive technical guide provides the specifications, methodologies, and quality assurance protocols necessary for professional surveying applications that demand sub-centimeter accuracy.
Survey-grade accuracy typically refers to positional accuracy of ±2-5cm horizontally and ±3-7cm vertically, meeting professional standards for cadastral surveys, engineering projects, and regulatory compliance. This level of precision is achieved through careful planning, proper equipment configuration, and rigorous quality control procedures.
Understanding Survey-Grade Requirements
Survey-grade accuracy standards are defined by various national and international surveying organizations. Understanding these requirements is crucial for project planning and execution.
Accuracy Classifications:
- Class A (High Precision): ±2cm horizontal, ±3cm vertical
- Class B (Standard Survey): ±5cm horizontal, ±7cm vertical
- Class C (Mapping Grade): ±10cm horizontal, ±15cm vertical
- Engineering Grade: ±15cm horizontal, ±20cm vertical
The choice of accuracy class depends on the project requirements, regulatory standards, and intended use of the survey data. Critical infrastructure projects typically require Class A accuracy, while general mapping applications may accept Class C standards.
Ground Control Points (GCP) Implementation
Ground Control Points serve as the foundation for achieving survey-grade accuracy. These precisely surveyed reference points provide the geometric framework for photogrammetric processing and coordinate system transformation.
GCP Planning and Distribution
Optimal GCP distribution is critical for achieving uniform accuracy across the survey area. The number and placement of GCPs directly impact the final accuracy of the photogrammetric output.
GCP Distribution Guidelines:
| Survey Area | Minimum GCPs | Recommended Distribution | Maximum Spacing |
|---|---|---|---|
| < 1 ha | 5-7 points | 4 corners + center | 100m |
| 1-10 ha | 8-12 points | Grid pattern | 200m |
| 10-50 ha | 15-25 points | Systematic grid | 300m |
| > 50 ha | 1 per 2-3 ha | Network approach | 500m |

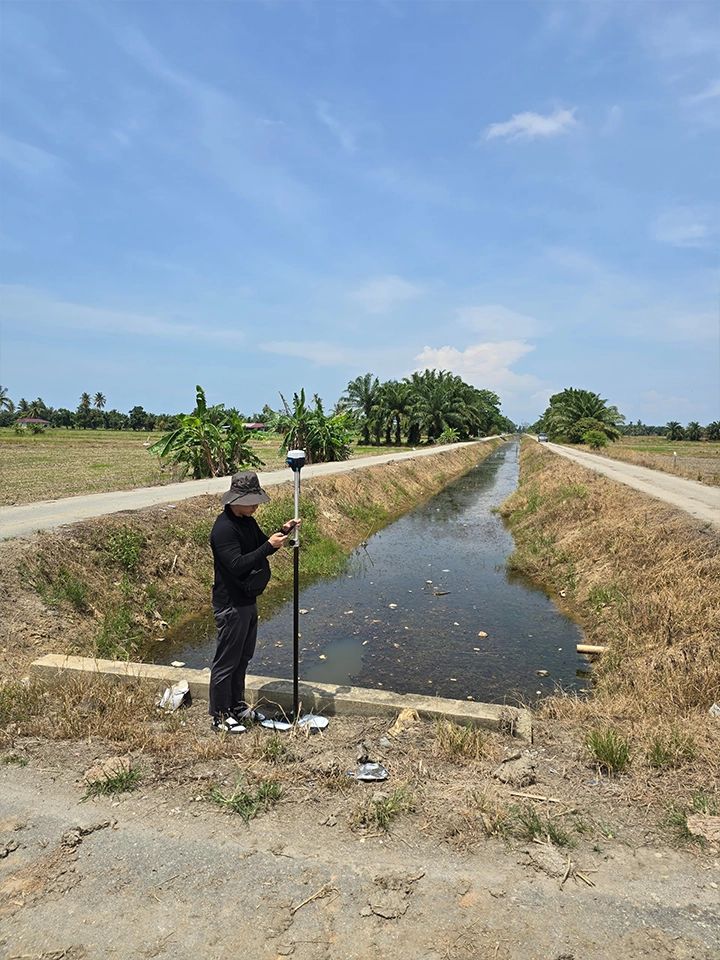

GCP Target Design and Placement
Proper GCP target design ensures reliable identification and measurement during photogrammetric processing. Target specifications must consider visibility, contrast, and environmental conditions.
GCP Target Specifications:
- Size: Minimum 40cm diameter for 100m flight altitude
- Contrast: High contrast colors (white/red or white/black)
- Shape: Circular or cross pattern for sub-pixel accuracy
- Material: Weather-resistant, UV-stable materials
- Visibility: Clear from all imaging angles

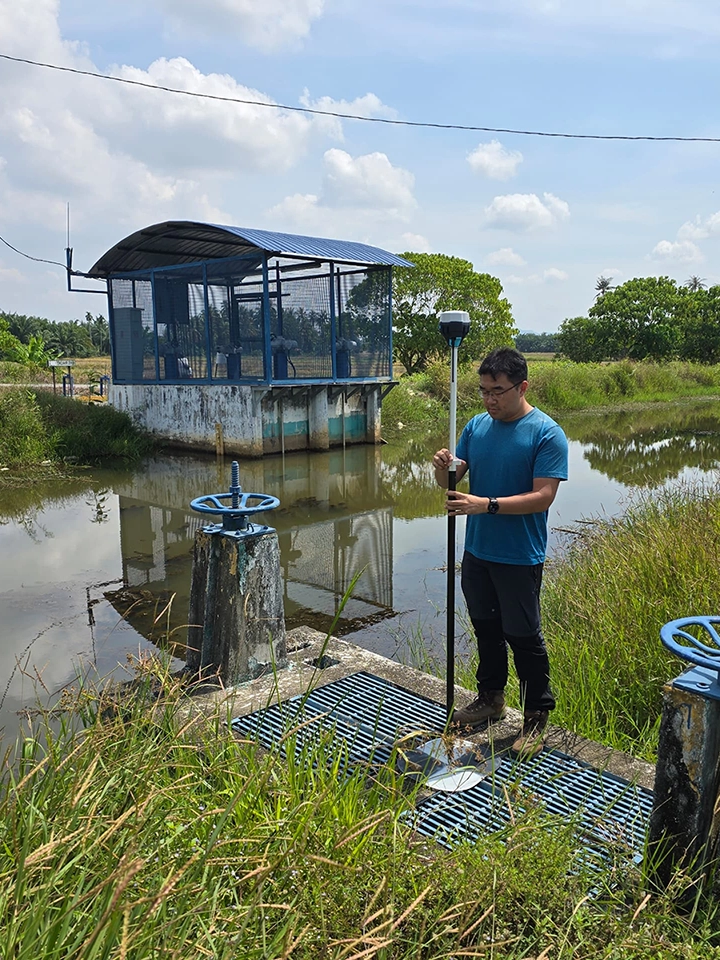

GCP Survey Methodology
GCP coordinates must be determined using high-precision surveying techniques. The accuracy of GCP coordinates directly impacts the final mapping accuracy.
Survey Equipment Requirements:
- GNSS Receiver: Dual-frequency, survey-grade (±2mm + 1ppm)
- Base Station: Fixed position with known coordinates
- Observation Time: Minimum 5 minutes per point
- Satellite Visibility: Minimum 6 satellites, PDOP < 2.0
- Processing Software: Professional post-processing tools
Real-Time Kinematic (RTK) Integration
RTK GNSS integration provides real-time positioning accuracy, reducing the dependency on traditional GCPs while maintaining survey-grade precision. This technology enables direct georeferencing of aerial imagery with centimeter-level accuracy.
RTK System Components
A complete RTK system consists of base station, rover (drone-mounted), and communication link. Each component must meet specific technical requirements for reliable operation.
RTK Base Station Requirements:
- Position Accuracy: Sub-centimeter known coordinates
- Communication Range: 10-20km line-of-sight
- Data Rate: 1-5Hz correction transmission
- Setup Time: < 15 minutes initialization
- Environmental: IP67 rating minimum
Drone RTK Configuration
Proper RTK configuration on the drone platform is essential for achieving consistent accuracy throughout the flight mission. Integration with flight control systems enables real-time quality monitoring.
RTK Rover Specifications:
- Fix Time: < 30 seconds to RTK fix
- Accuracy: 1cm + 1ppm horizontal, 2cm + 1ppm vertical
- Update Rate: 10-20Hz positioning
- Integration: Compatible with autopilot systems
- Logging: Raw observation data recording
PPK vs RTK Comparison
Both Real-Time Kinematic (RTK) and Post-Processed Kinematic (PPK) methods can achieve survey-grade accuracy. The choice depends on operational requirements and site conditions.
| Aspect | RTK | PPK |
|---|---|---|
| Real-time accuracy | ✓ Immediate | ✗ Post-flight processing |
| Communication dependency | ✗ Requires radio link | ✓ No real-time link needed |
| Processing complexity | ✓ Automated | ✗ Manual processing required |
| Final accuracy | 1-2cm | 1-2cm |
| Operational range | Limited by radio | Unlimited |
Coordinate Systems and Transformations
Proper coordinate system selection and transformation procedures are fundamental to achieving survey-grade accuracy. Understanding datum relationships and projection parameters ensures consistent results across different survey projects.
Datum Selection and Configuration
The choice of geodetic datum affects the absolute positioning accuracy and compatibility with existing survey infrastructure. Modern surveys typically use WGS84 or national datums with precise transformation parameters.
Common Survey Datums:
- WGS84: Global datum, GNSS native
- GDM2000: Malaysian national datum
- SVY21: Singapore national datum
- Local Datums: Project-specific coordinate systems
Projection Systems
Map projections minimize distortion for specific geographic regions. Survey projects require appropriate projection selection to maintain accuracy across the project area.
Projection Considerations:
- Scale Factor: Typically 0.9996 for UTM zones
- Central Meridian: Aligned with project longitude
- False Origin: Eliminates negative coordinates
- Grid Convergence: Angular difference from true north
Transformation Quality Control
Coordinate transformation accuracy must be validated through independent check points and statistical analysis. Residual analysis identifies systematic errors and transformation quality.
Transformation Validation Metrics:
- RMS Error: < 2cm for survey-grade projects
- Maximum Residual: < 3× RMS error
- Check Points: Minimum 20% of total GCPs
- Statistical Distribution: Normal distribution of residuals
Photogrammetric Processing Workflow
Survey-grade photogrammetric processing requires specific parameter settings and quality control procedures. Processing workflow optimization ensures consistent accuracy while maintaining computational efficiency.
Image Quality Requirements
High-quality imagery forms the foundation of accurate photogrammetric processing. Image specifications must meet minimum requirements for professional surveying applications.
Image Quality Standards:
- Ground Sampling Distance: 1-3cm for engineering surveys
- Overlap: 80% forward, 70% side overlap minimum
- Exposure: Consistent, avoid over/under exposure
- Focus: Sharp focus across entire image
- Motion Blur: Minimize through proper flight speed
Processing Parameter Optimization
Processing parameters significantly impact final accuracy and processing time. Optimal settings balance accuracy requirements with computational resources.
Critical Processing Settings:
- Alignment Quality: High or Ultra High for survey work
- Dense Cloud Quality: High for detailed topography
- Filtering: Moderate filtering to preserve detail
- Mesh Resolution: Based on required output scale
- Texture Resolution: Match orthomosaic requirements
Bundle Adjustment Optimization
Bundle adjustment is the core mathematical process that determines camera positions and orientations. Proper optimization ensures geometric consistency throughout the survey area.
Bundle Adjustment Parameters:
- Camera Calibration: Self-calibrating bundle adjustment
- Control Point Weighting: Higher weight for survey GCPs
- Tie Point Filtering: Remove outliers and poor matches
- Iteration Convergence: Monitor residual reduction
- Constraint Application: Apply appropriate geometric constraints
Quality Assurance and Validation
Comprehensive quality assurance protocols ensure that survey-grade accuracy requirements are met consistently. Systematic validation procedures identify potential issues before final deliverable production.
Pre-Flight Quality Checks
Thorough pre-flight planning and equipment validation prevent accuracy degradation due to systematic errors or equipment malfunction.
Pre-Flight Checklist:
- ☐ GCP targets deployed and surveyed
- ☐ RTK base station initialized and logging
- ☐ Drone RTK system achieving fixed solution
- ☐ Camera calibration parameters verified
- ☐ Flight plan parameters optimized
- ☐ Weather conditions within specifications
- ☐ Battery levels and backup equipment ready
- ☐ Safety protocols and permissions confirmed
In-Flight Monitoring
Real-time monitoring during flight operations enables immediate corrective action if accuracy parameters drift outside acceptable limits.
Critical Flight Parameters:
- RTK Fix Status: Maintain fixed solution > 95% flight time
- Positional Accuracy: Monitor real-time accuracy estimates
- Image Quality: Check exposure and sharpness during flight
- Overlap Verification: Ensure adequate image overlap maintained
- Flight Altitude: Consistent altitude for uniform GSD
Post-Processing Quality Control
Systematic quality control procedures validate processing results and identify potential accuracy issues before final delivery.
Quality Control Metrics:
- GCP Residuals: RMS < 1 GSD for each GCP
- Check Point Analysis: Independent accuracy validation
- Tie Point Statistics: Evaluate image matching quality
- Camera Position Accuracy: Validate RTK/PPK processing
- Dense Cloud Noise: Statistical analysis of elevation data
Accuracy Reporting and Documentation
Professional accuracy reporting provides transparent documentation of survey methods, results, and limitations. Proper documentation supports regulatory compliance and professional standards.
Required Documentation:
- Survey Methodology: Detailed procedure description
- Equipment Specifications: All hardware and software used
- Coordinate System Details: Datum, projection, and transformations
- Accuracy Assessment: Statistical analysis and validation results
- Quality Control Records: All QC checks and corrective actions
- Deliverable Specifications: Format, accuracy, and limitations
Best Practices and Common Issues
Experience-based best practices help avoid common pitfalls that can compromise survey accuracy. Understanding typical issues and their solutions enables consistent high-quality results.
Field Operations Best Practices
GCP Placement Strategy
- Avoid areas with vegetation movement
- Select stable, accessible locations
- Consider long-term visibility needs
- Document all GCP locations with photos
RTK Base Station Setup
- Position away from reflective surfaces
- Ensure clear sky visibility (15° mask angle)
- Secure mounting to prevent movement
- Log raw observations for PPK backup
Flight Planning Optimization
- Plan flights during optimal lighting conditions
- Avoid high wind or turbulent conditions
- Maintain consistent flight altitude
- Include buffer area around survey perimeter
Data Management
- Implement redundant data backup procedures
- Use standardized file naming conventions
- Maintain detailed project logs
- Verify data integrity before leaving site
Common Issues and Solutions
Issue: Inconsistent RTK Fix
Symptoms: Intermittent positioning accuracy, float solutions
Solutions:
- Check base station communication range
- Verify antenna connections and cables
- Assess multipath interference sources
- Confirm correction data format compatibility
Issue: High GCP Residuals
Symptoms: Poor photogrammetric accuracy, large coordinate residuals
Solutions:
- Re-survey GCP coordinates for verification
- Check for systematic coordinate errors
- Verify image identification of GCP targets
- Review camera calibration parameters
Issue: Processing Convergence Problems
Symptoms: Bundle adjustment fails to converge, poor tie point quality
Solutions:
- Increase image overlap in problematic areas
- Improve image quality (focus, exposure)
- Add more GCPs in poorly constrained areas
- Adjust processing parameters and constraints
Technology Integration and Future Trends
The evolution of survey-grade mapping technology continues to improve accuracy, efficiency, and automation. Understanding emerging trends helps plan for future capability requirements.
Emerging Technologies
Multi-GNSS Integration
Integration of GPS, GLONASS, Galileo, and BeiDou constellations improves positioning accuracy and reliability, especially in challenging environments.
AI-Enhanced Processing
Machine learning algorithms improve automatic tie point detection, image matching, and quality control procedures, reducing manual intervention requirements.
Real-Time Quality Assessment
Advanced algorithms provide real-time accuracy assessment during flight operations, enabling immediate corrective actions.
Cloud-Based Processing
Distributed processing capabilities enable faster turnaround times and access to advanced algorithms without local hardware investments.
Integration with Traditional Surveying
Modern survey workflows integrate drone mapping with conventional surveying methods, creating comprehensive survey solutions that leverage the strengths of each technology.
Hybrid Survey Approaches:
- Boundary Surveys: Combine drone mapping with precise boundary measurements
- Construction Monitoring: Regular drone surveys with spot checks using total stations
- Volumetric Analysis: Drone-based stockpile measurement with traditional control networks
- As-Built Documentation: Integration of 3D models with CAD drawings
Conclusion: Achieving Consistent Survey-Grade Results
Survey-grade accuracy in drone mapping requires systematic implementation of proven methodologies, rigorous quality control, and proper integration of GNSS technology. Success depends on careful attention to every aspect of the workflow, from initial planning through final deliverable production.
The investment in proper equipment, training, and procedures pays dividends through consistent, reliable results that meet professional surveying standards. As technology continues to advance, the principles outlined in this guide remain fundamental to achieving survey-grade accuracy.
Key Takeaways for Survey-Grade Success:
- Implement comprehensive GCP networks with proper distribution
- Utilize RTK/PPK GNSS for maximum positioning accuracy
- Maintain rigorous quality control throughout all workflow stages
- Document all procedures and validate results independently
- Stay current with evolving technology and best practices
